Nice chart of exposure and bio-effects examples

Post by Doug Coulter »

http://xkcd.com/radiation/

Believe it or not, this was posted off topic on http://www.groklaw.net

And even though it's xkcd, it's not a comic. This is a good one for keeping things in perspective. Personally, I'm trying to keep my own exposures so they sum to no more than doubling the background I get anyway, with a limit per dose/day in the 1 millirem range. I don't get exposed every day, of course, and we do keep our calibration sources stored away from living quarters.

From here One Sv = 100 rem.

I got it converted to gif so it displays nicely here (and isn't too many bits).

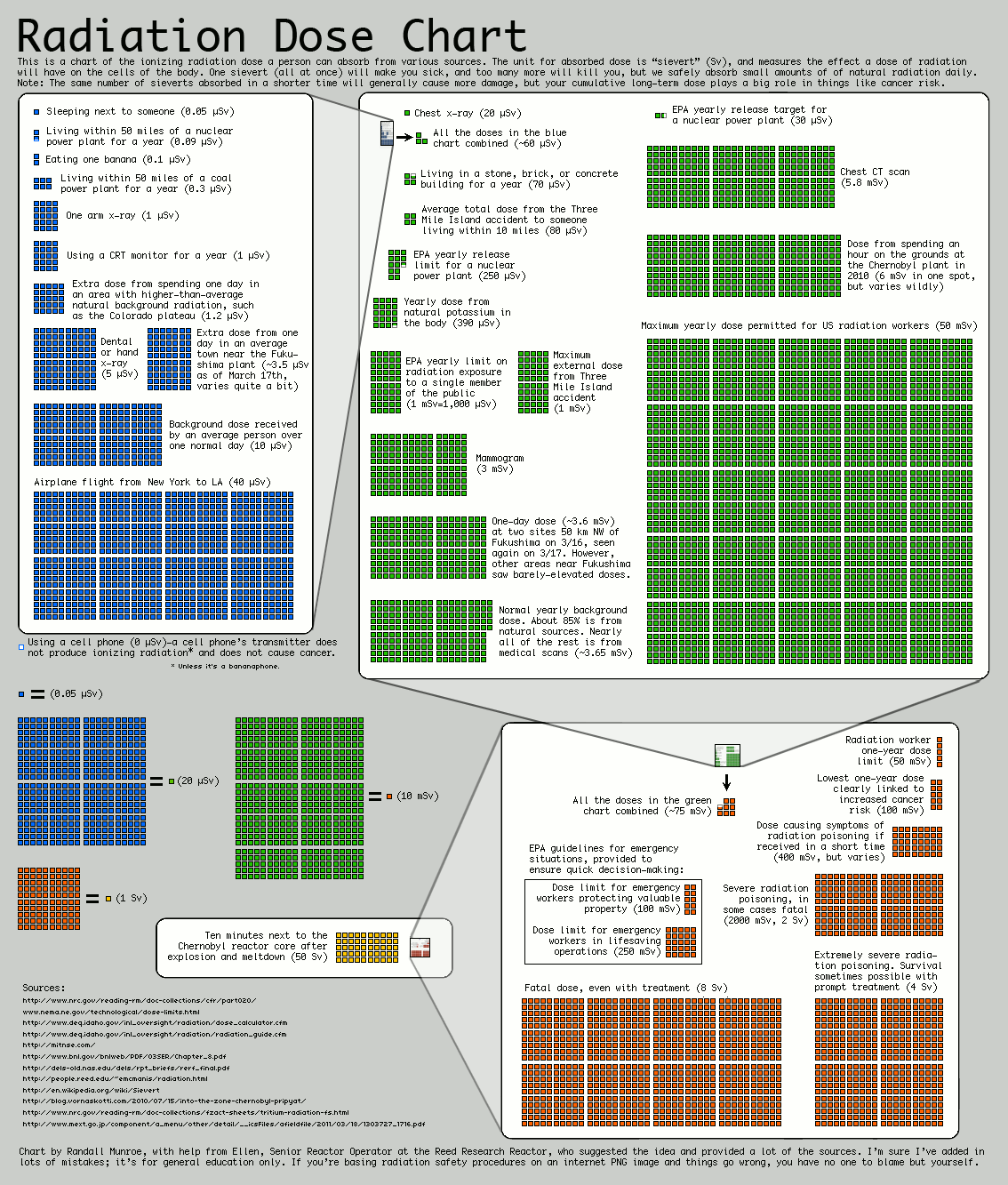

Rad exposure chart from XKCD
Rad exposure chart from XKCD
To convert hourly rates to yearly multiply by 8766 (hours in the average year, or 365.25 days)
Posting as just me, not as the forum owner. Everything I say is "in my opinion" and YMMV -- which should go for everyone without saying.
